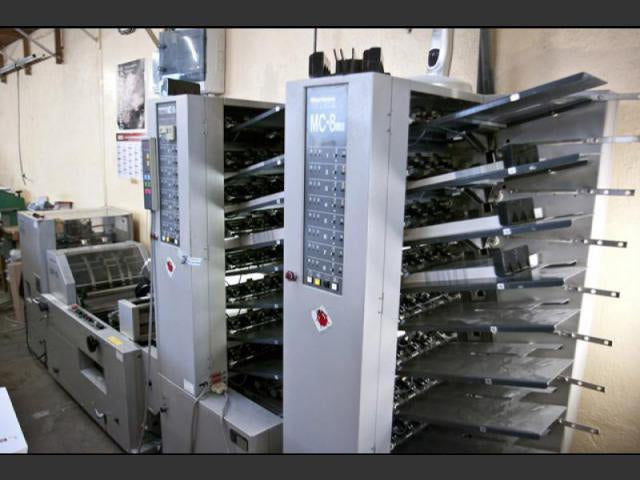

HORIZON MC 80
Spezifikationen
| Baujahr | - |
| Format | - |
| Totalisator | - |
| Druckwerke | - |
| Extras | - |
Details
- - air suction collator MC-80a- air suction collator MC-80m- stitching and folding SPF-10II- frontcutter FC-10II- short conveyorHorizon MC-80a Horizon MC-80mair suction collators:- model: air-suction collator- bins: 8- error avoidance: misfeed-, doublefeed- and jamming control- expandable to 6 collators (48 bins)programs:- doublecycle (nonstop-work)- inject (simply and doubly)- booklet making program - selective collating- sheet size: max. 470x318mm; min. 160x110mm; - processing strength: 50-260g/sqm- loading height: 50mm/ bin- production speed: max. 5.100 cycles/h- power: 400V - 1,86kW- dimension: 660x810x1660mm- weight: 229kgHorizon SPF-10II stitching- and folding:- format adjustment: manually- stitching heads: 2 expandable up to 4 stitching heads- stapling options: top-, side-, cornerstitiching- ring eylete stitiching: with ring eyelet stitching heads possible- inlet format: max. 330x305mm; min. 148x148mm- processing strength:min. 2 pages; max. 4mm- clip distance: min. 73mm- stitching wire: 26 - 28- production speed: max. 2.800 booklets/h- power: 230V; 50Hz - 0,5kW- dimensions: 2.130x610x850mm- weight: 280kgHorizon FC-10IIfrontcutter:- counter- faulty set ejection- booklet size:max. 225x20mm; min. 99x2mm- size front cut:max. 20mm- trimming thickness:min. 4 pages / max. 88 pages (80g/sqm)- production speed: max. 2.800 booklets/h- power: 230V; 50Hz - 0,25kW- dimensions: 570x610x1.040mm - weight: 170kg
