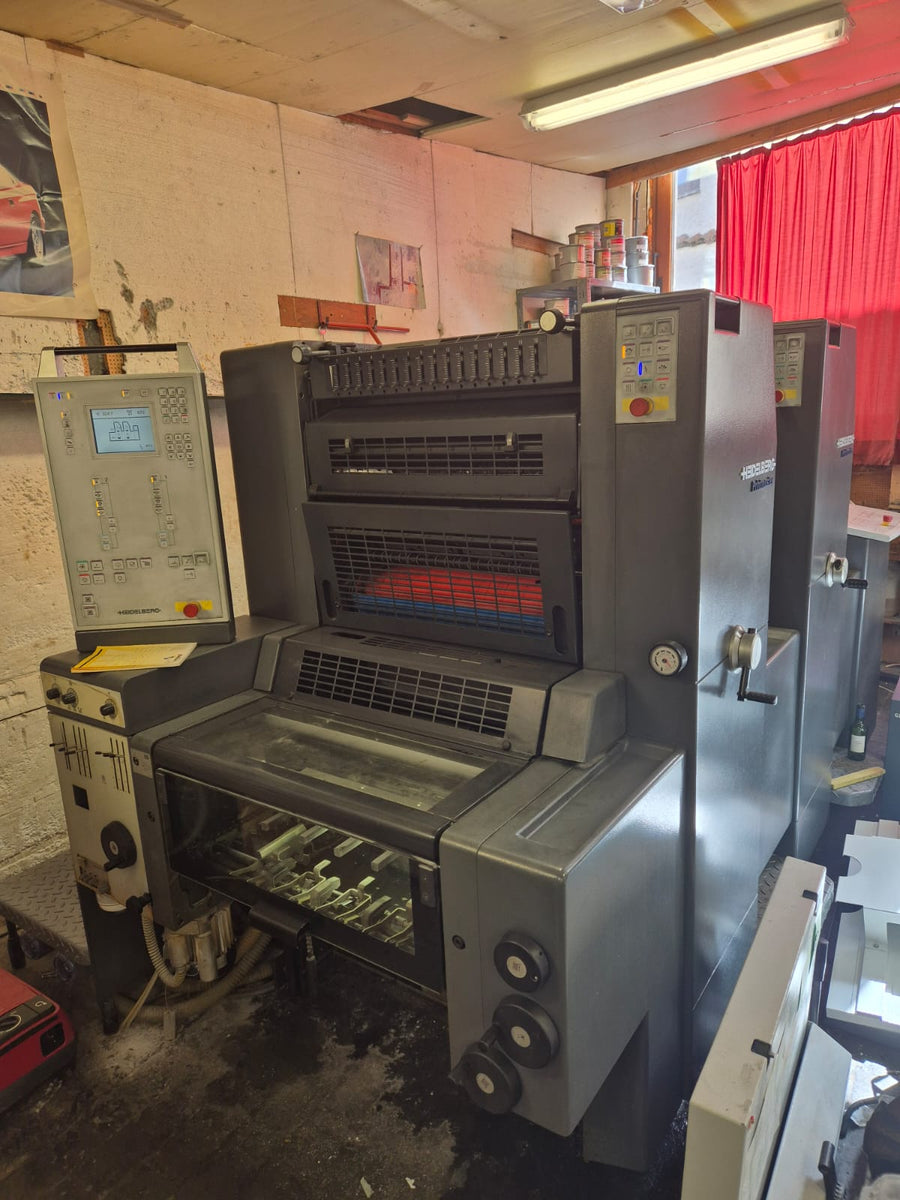

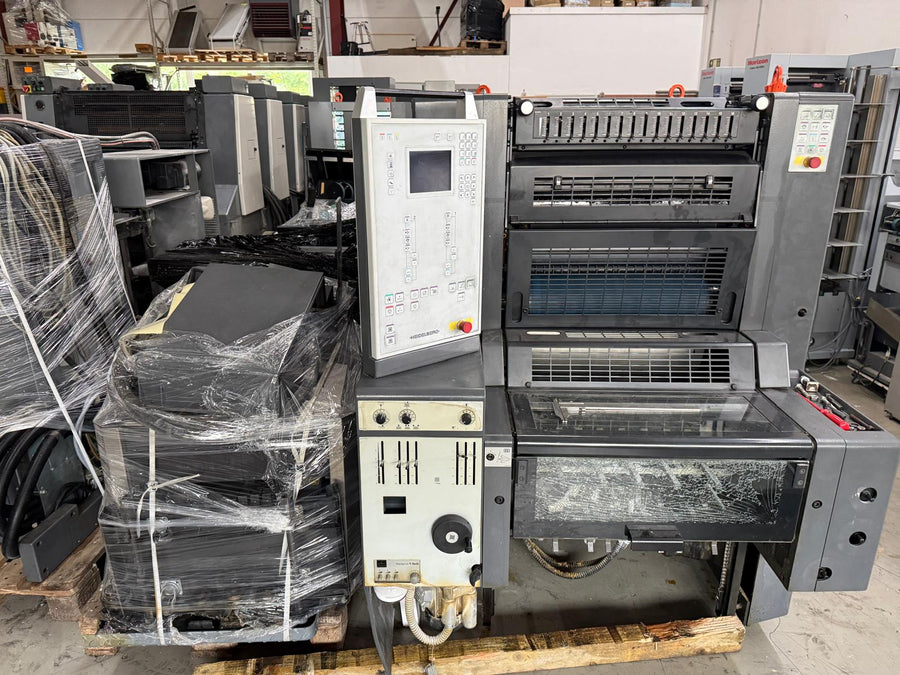

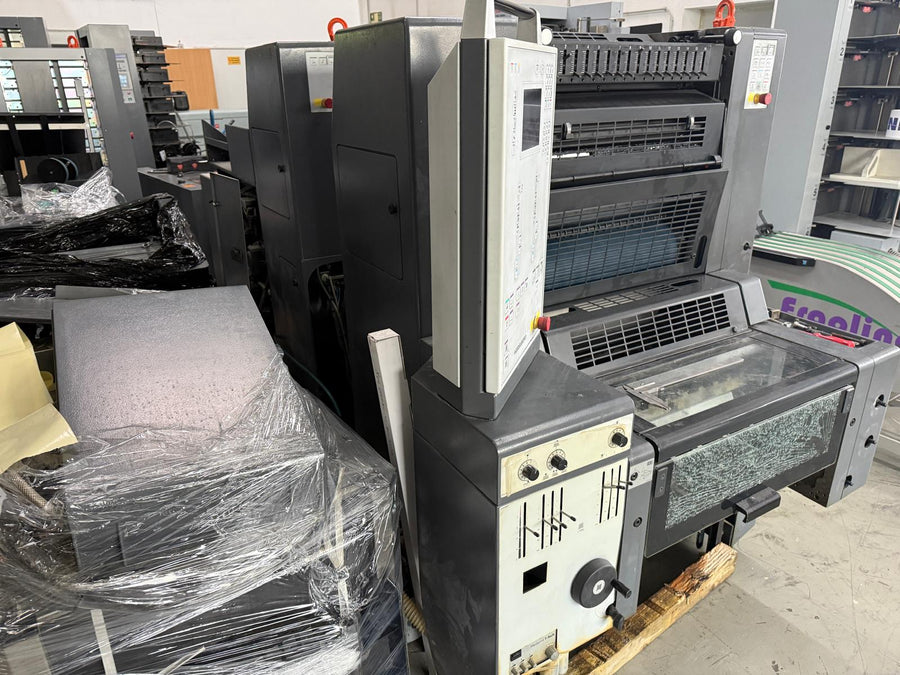

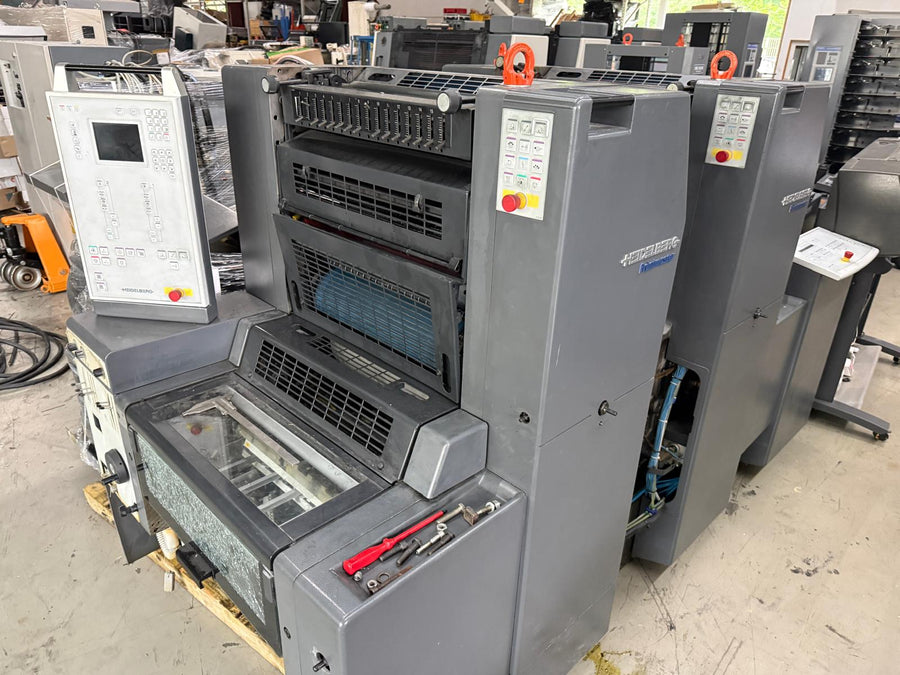

2006 Heidelberg PM 52-2+
Spezifikationen
| Baujahr | 2006 |
| Format | 37x52 |
| Totalisator | 38 |
| Druckwerke | 2 |
| Extras | BALDWIN refrigeration recirculation · Easyplate · Press Control self diagnostic, control and monitore console Alcolor automatic Film Dampening Ink washer/ Blanket washer · Powder Spray Mediprint · Plusversion |
Details
- Format
- Max. sheet size: approx. 370 × 520 mm
- Min. sheet size: approx. 105 × 145 mm
- Image area: approx. 360 × 520 mm
- Material
- Paper thickness: approx. 0.03 – 0.4 mm
- Paper weight: approx. 40 – 300 gsm (typical range)
- Performance
- Speed: up to ~13,000 – 15,000 sheets/hour
- Machine Data
- Dimensions (L × W × H): approx. 2860 × 1850 × 1620 mm
- Weight: approx. 2,600 – 4,800 kg (depending on configuration)
- Equipment / Features
- Alcolor continuous dampening system
- Technotrans cooling / circulation unit
- EasyPlate (semi-automatic plate change)
- CP Tronic / control console
- automatic blanket & roller wash-up devices
- electronic double sheet detection
- suction feeder system
- powder spray unit (e.g. Mediprint)
Interesse an dieser Maschine?
Wir antworten innerhalb von 24 Stunden — für: 2006 Heidelberg PM 52-2+
