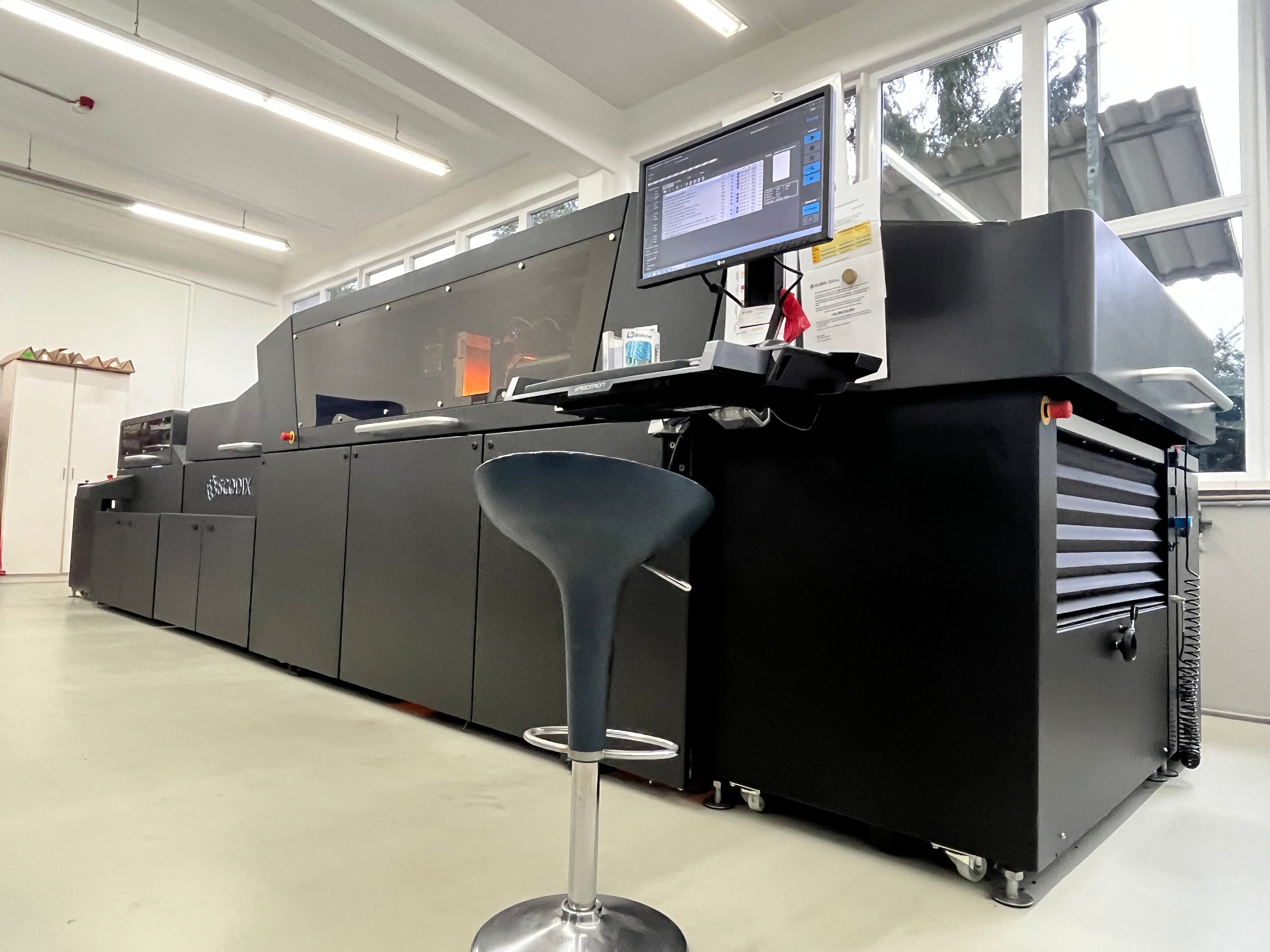

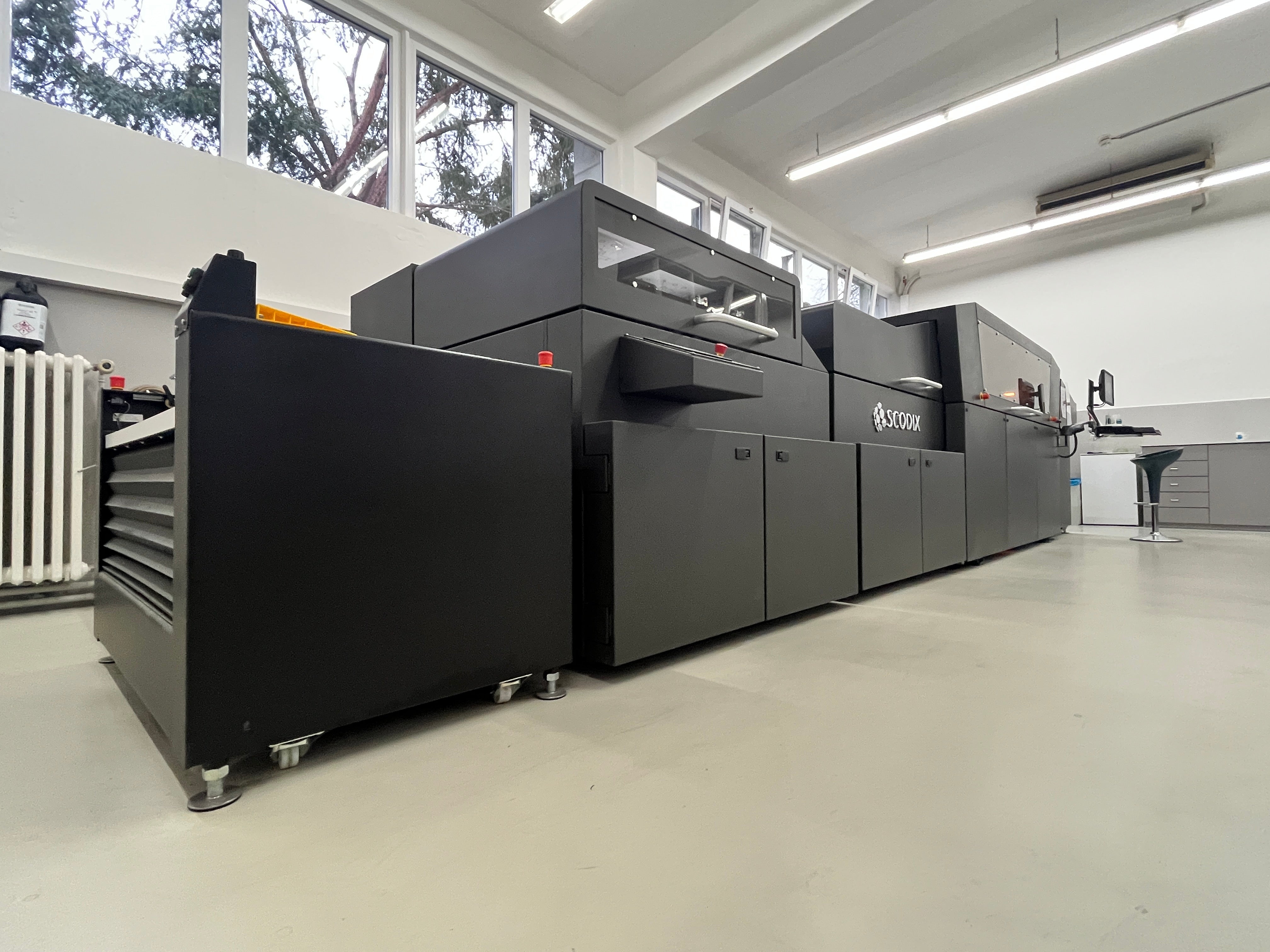

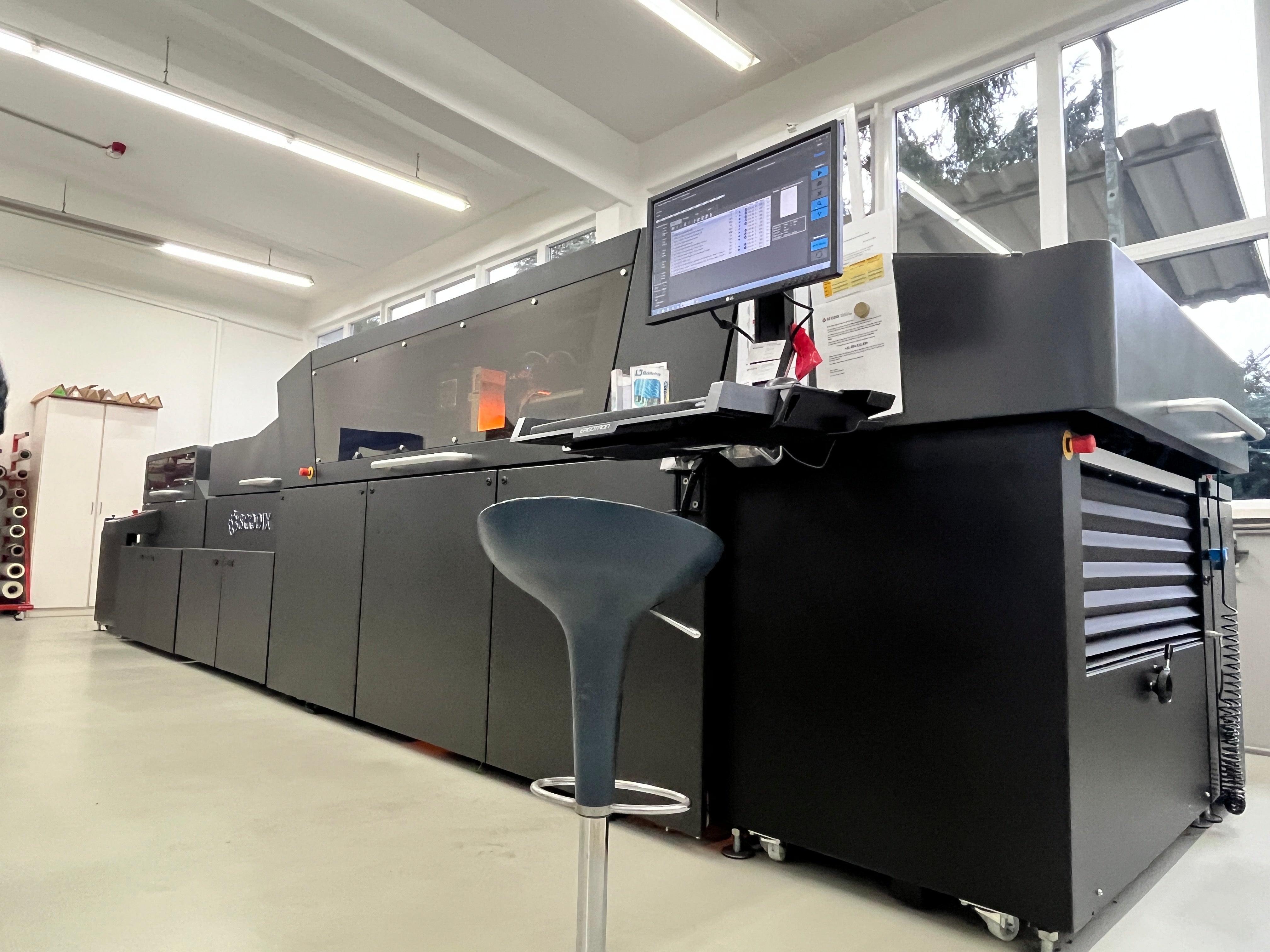

2019 Scodix Ultra 202
Specifications
| Year of manufacture | 2019 |
| Format | - |
| Totalizer | - |
| Printing units | - |
| Extras | - |
Details
- SCODIX ULTRA 202

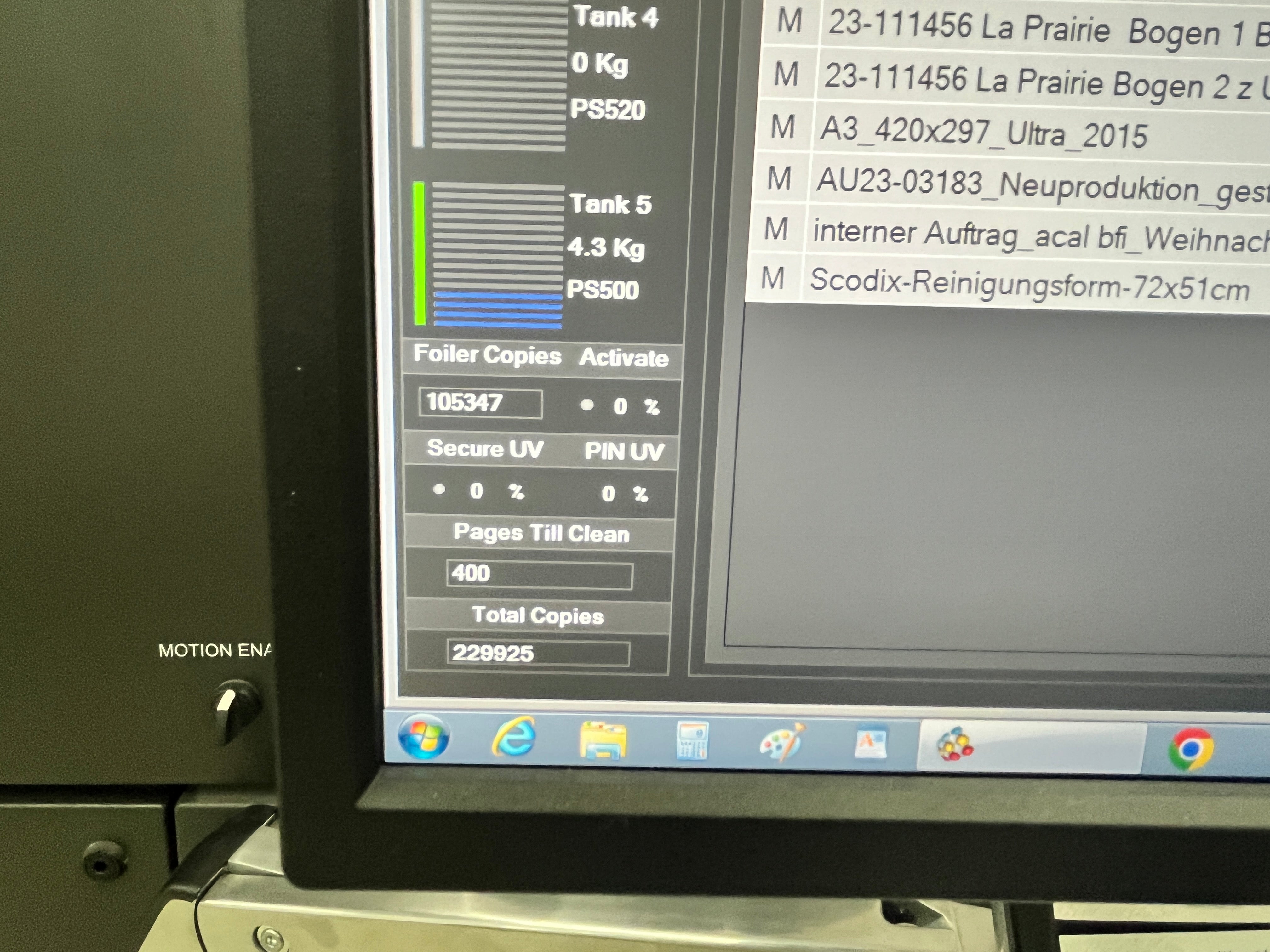

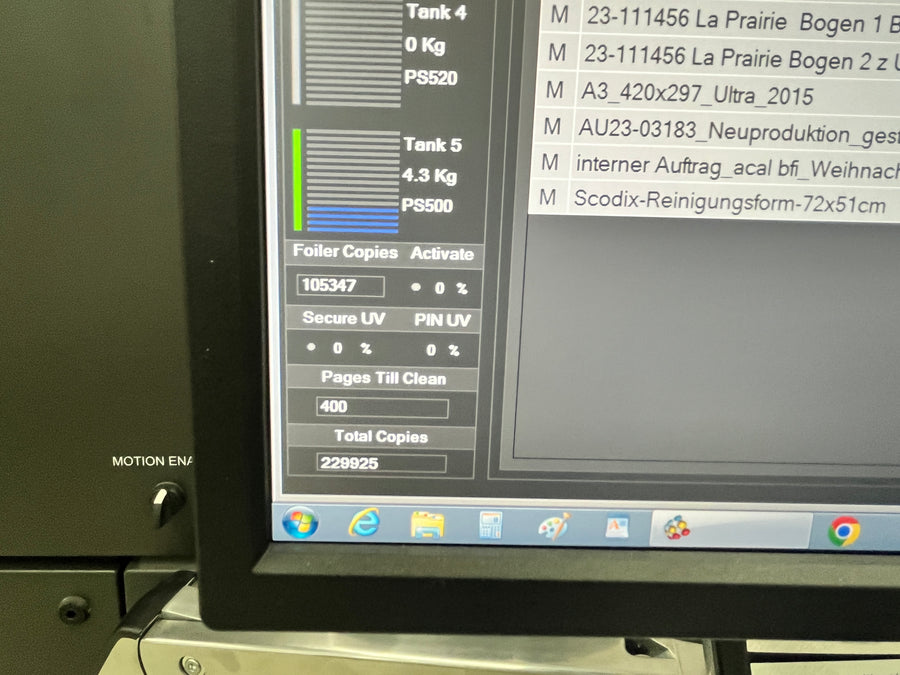

- Year 2019Printing counter: only 230.000 copiesPaper size Min: 29 x 42 cm Paper size Max: 54 x 78 cmPrinting size Max: 74 x 50 cm

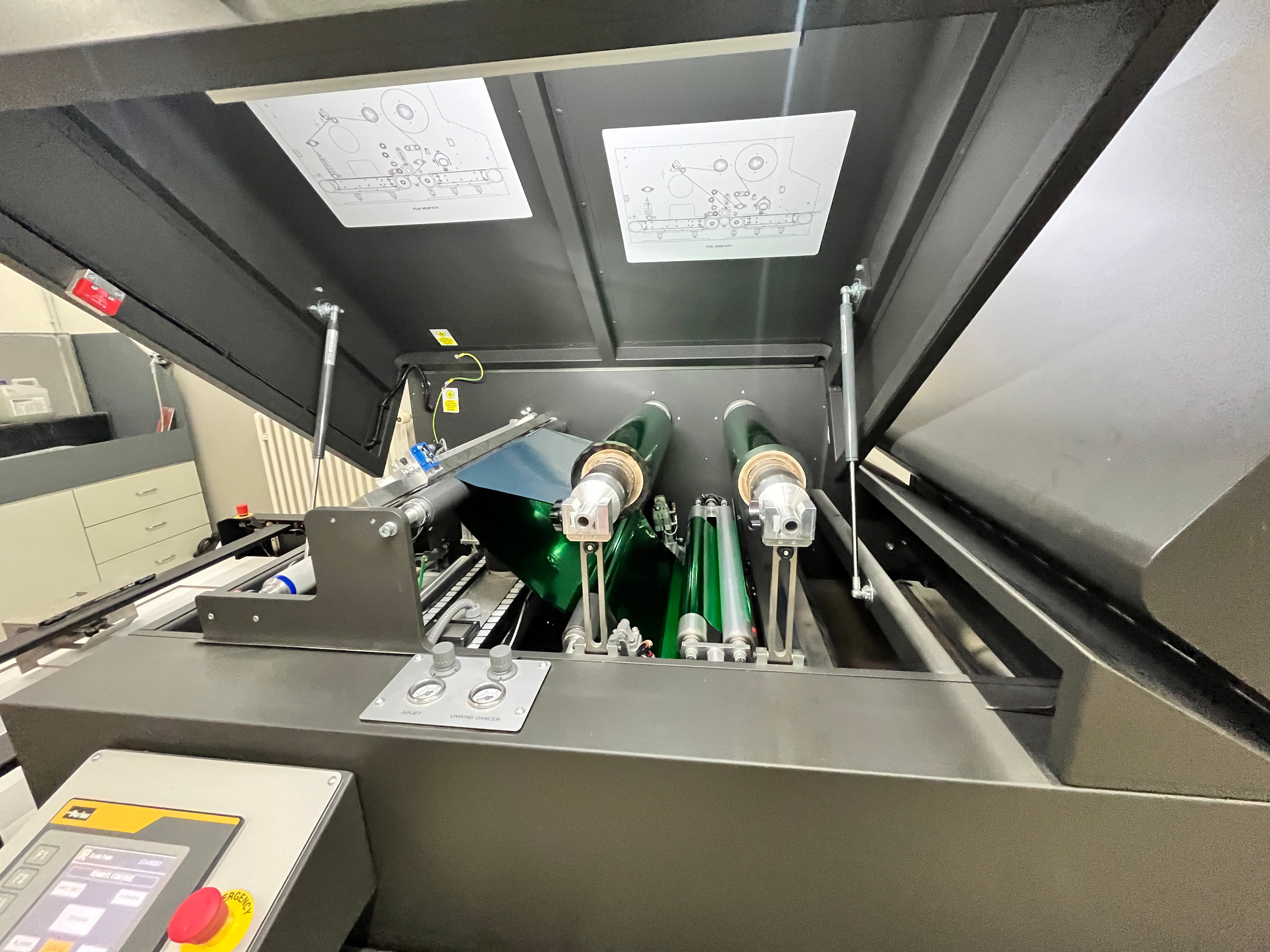

- Foil technology
- Digital in-line with Scodix PAS foil technology
- Foil roll width (min/max)
- 50-500 mm/1.97-19.68 in
- Foil roll size
- Diameter:max 30 cm; Length:max 2,000 m; Core:77mm/3 in
- Max number of simultaneous rolls
- Up to 4 rolls
- Polymer layer thickness
- From 5 up to 250 microns
- Substrate weight
- 135-675 gsm/6-30 points
- Substrate thickness
- Up to 700 microns
- Foil film type**
- Wide variety of industry standard hot/cold foil films
- Substrates***
- Offset, Plastics, laminated and coated/uncoated substrates
- Resolution
- Up to 2540 x 450 DPI
- Variable Data Enhancement (VDE)
- PDF, optimized PDF, barcode system (optional)
- Scodix RSP™ Technology
- 4 CCD camera system, RSP™ (Rotate, Scale, Position) algorithm, automatic positioning, ± 100 micron image to image registration

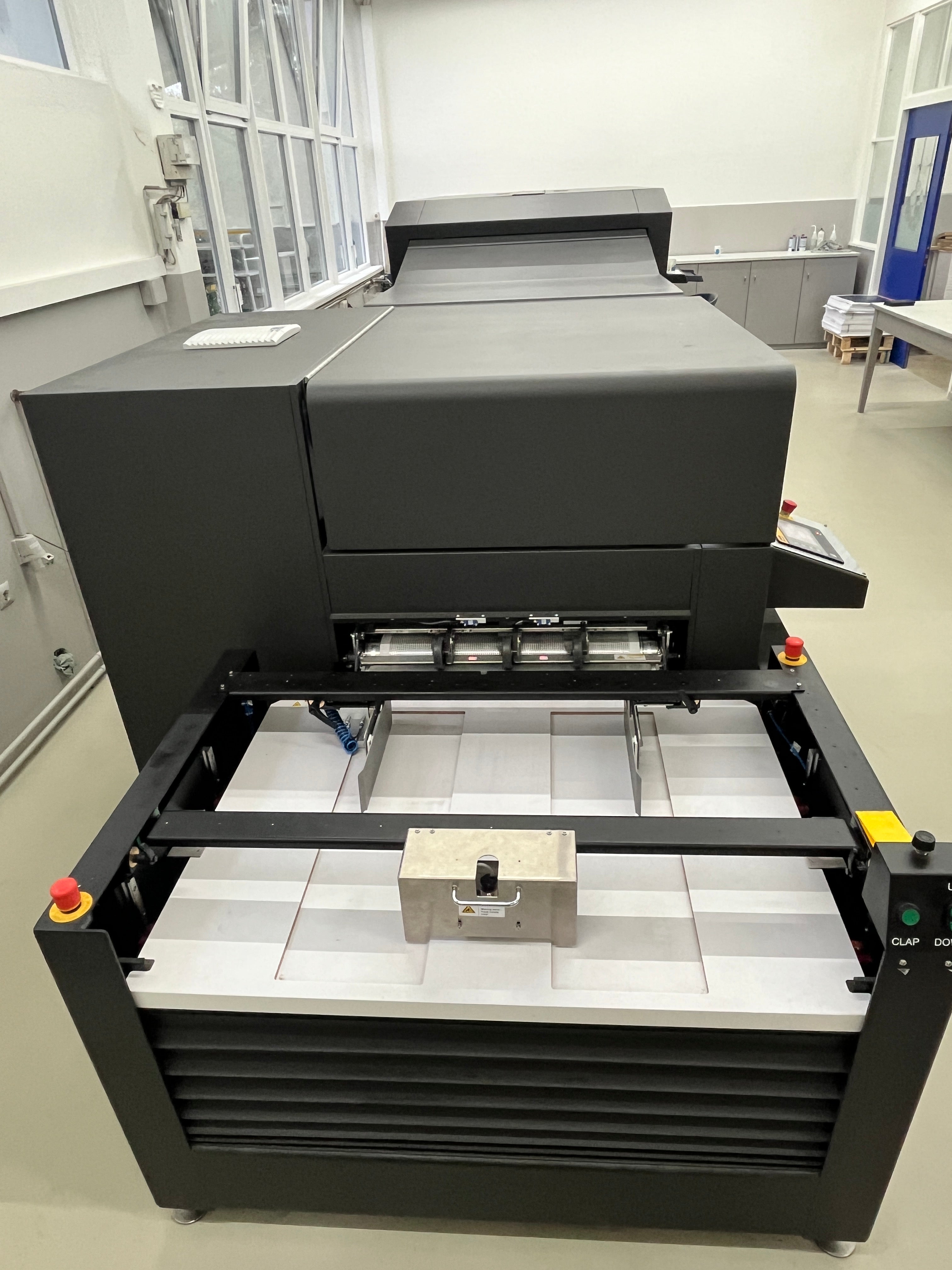

- Substrate loading sizes
- Min – L297 x W420 mm / 11.7 x 16.5 in Max – L545 x W788 mm / 21.5 x 31 in
- Printing image sizes
- Max – L748 x W504 mm / 29.4 x 19.9 in

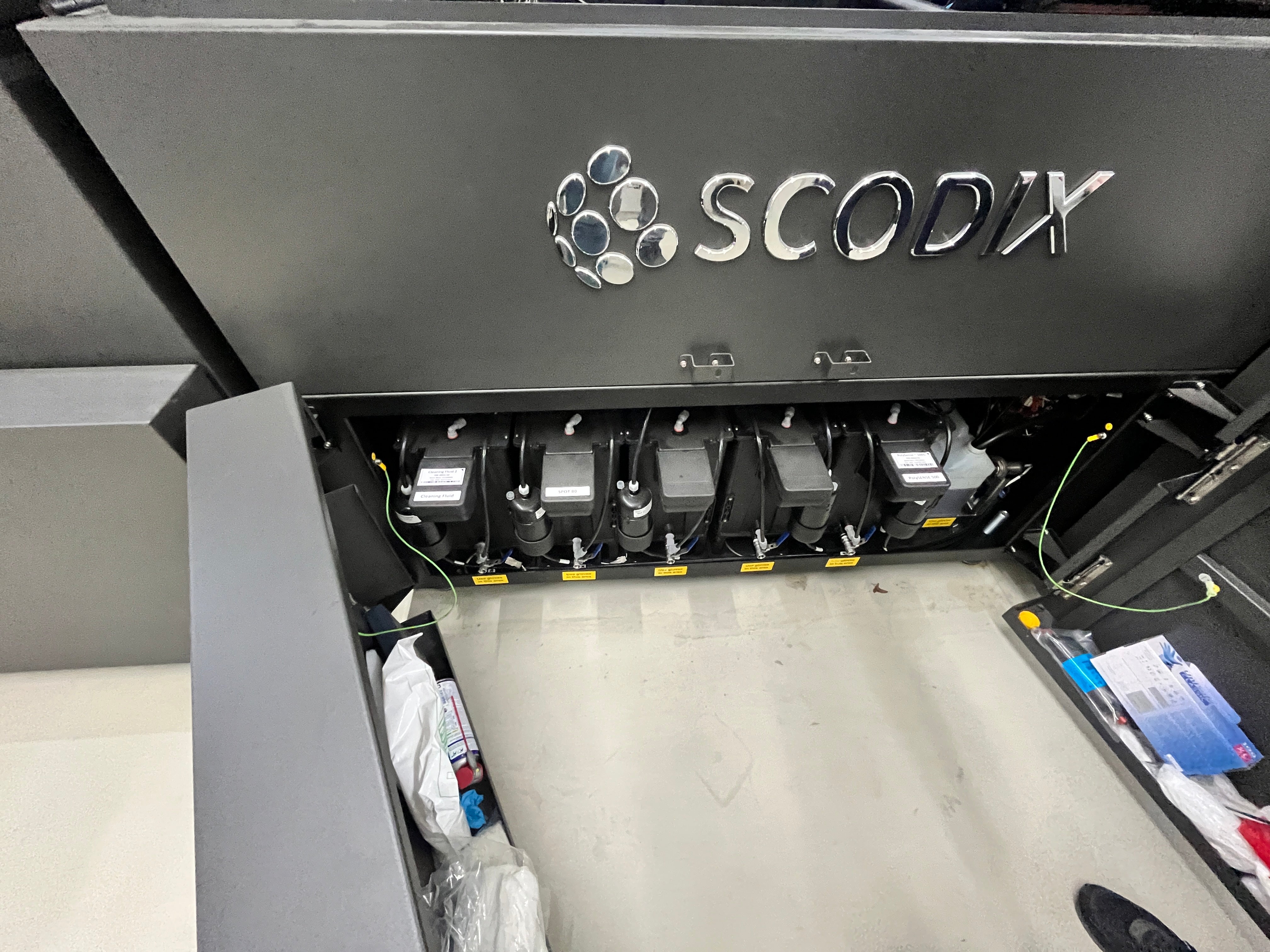

- Polymer tank system
- 4 polymer tanks
- Press dimensions (L x H x W)
- 7880 x 1790 x 1979 mm / 310.2 x 70.4 x 77.9 in
- Press weight (net)
- 5300 kg / 11684 lbs.
