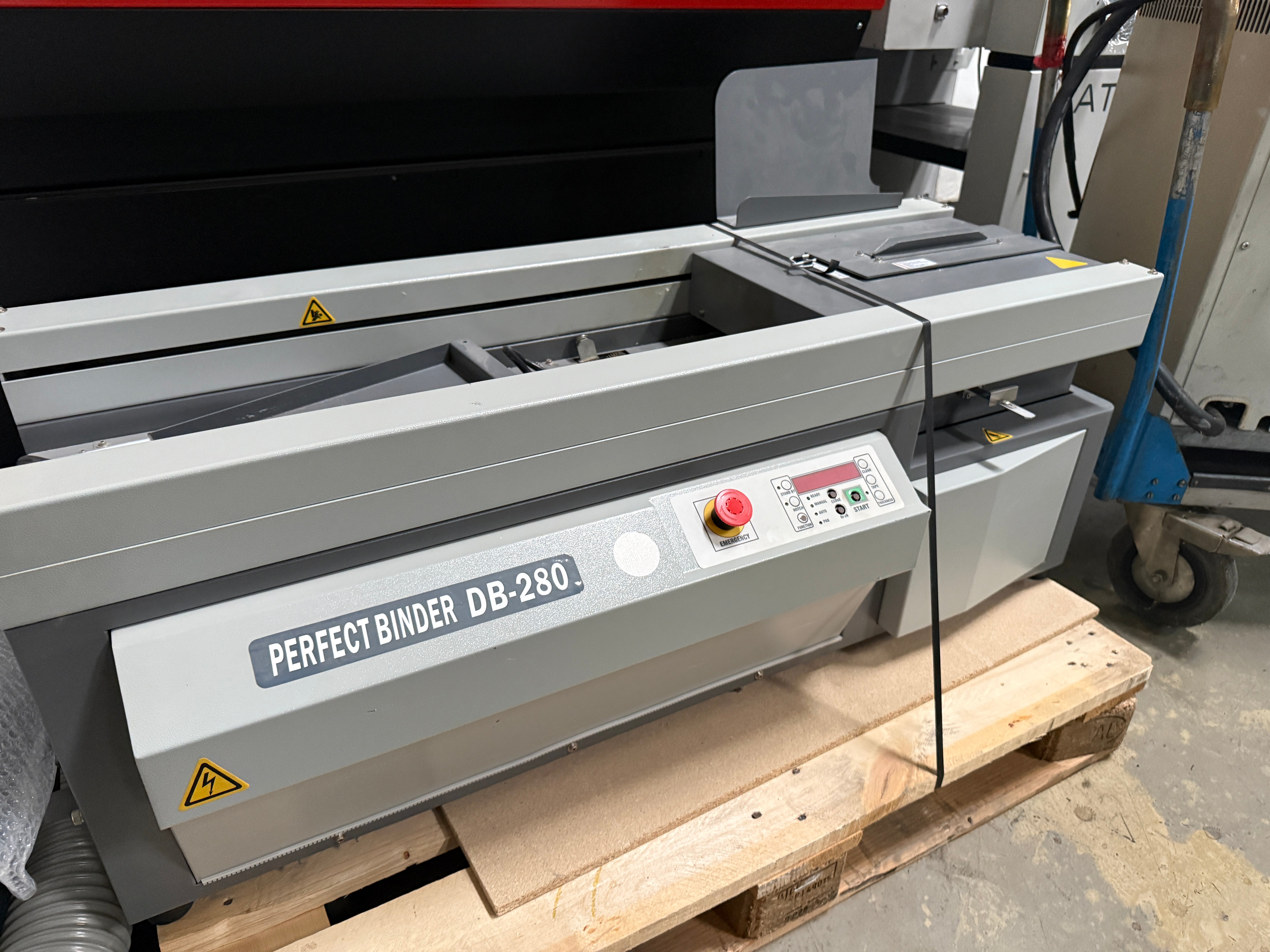

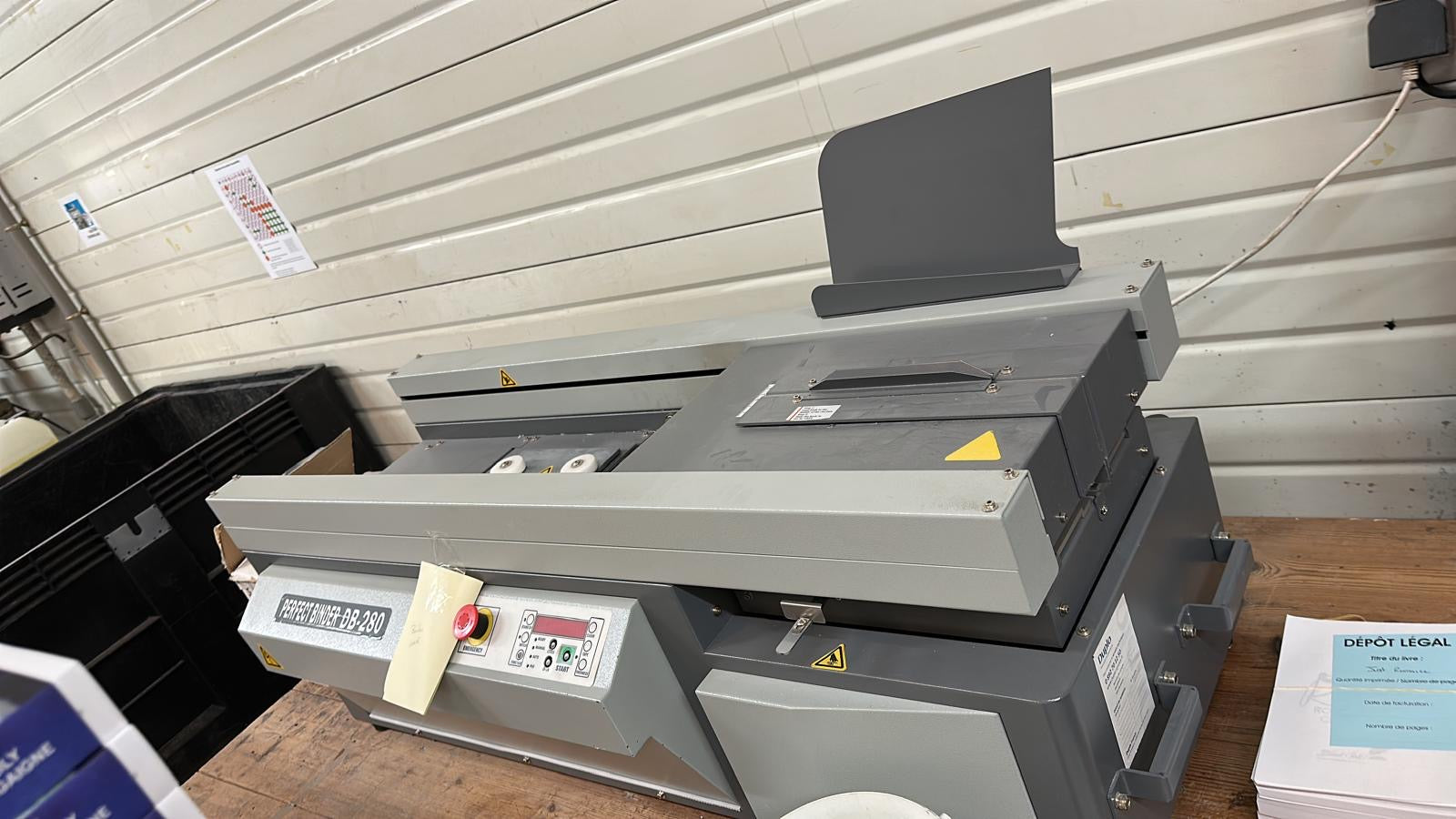

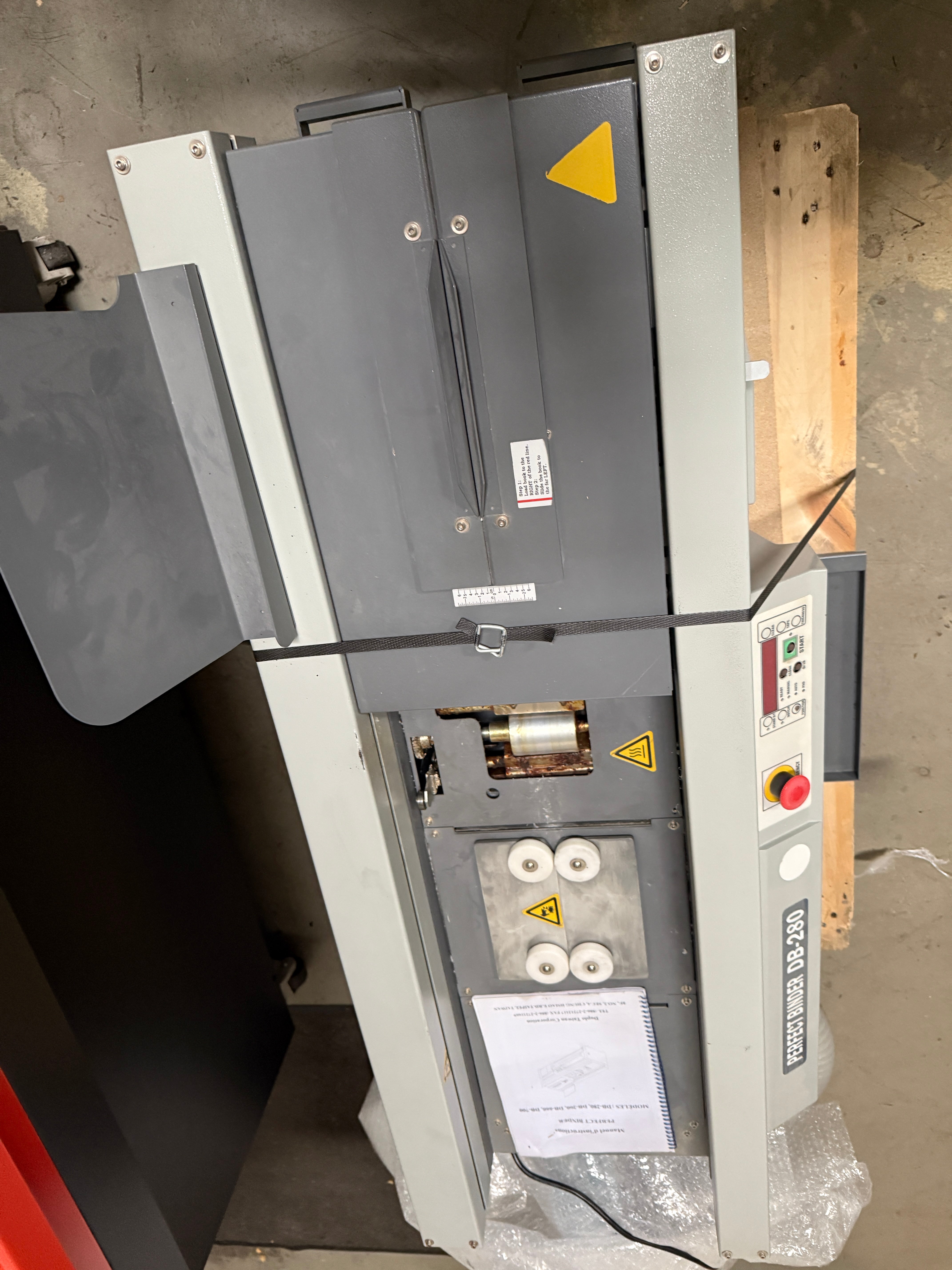

2018 Duplo DB 280

Producing up to 200 books per hour, the DB-280 is ideal for short-run, on-demand applications.
With the automated performance and other outstanding features typically reserved for more expensive machines, this perfect binder provides centrally-located controls for single-operator efficiency. Simply place flat sheets into the clamp where pages are gripped automatically and the binding process begins. A double pass over the roughening cutter provides superior notching for superb glue penetration. Its clamping and nipping system ensure consistent square binds. The DB-280 Perfect Binder also has tape binding capabilities and with a quick push of a button, can convert to a padding function where only the precise amount of glue is added for perfectly bound notepads.

Features:
Produces up to 200 books per hour
Up to 360 cycles per hour
Creates perfect bound, tape bound, and padded books
Single-operator design and easy changeovers
Unique notching method for maximum glue penetration
Improved clamping and nipping system

SPECIFICATIONS:
Maximum Book Size : 320mm x 400mm
Minimum Book Size : 80mm x 50mm
Maximum Cover Size 320mm x 838.2mm
Maximum Binding Thickness 40mm
Glue Warm-Up 25 minutes
Cycle Speed Up to 360 cycles per hour
Production Speed Up to 200 books per hour
