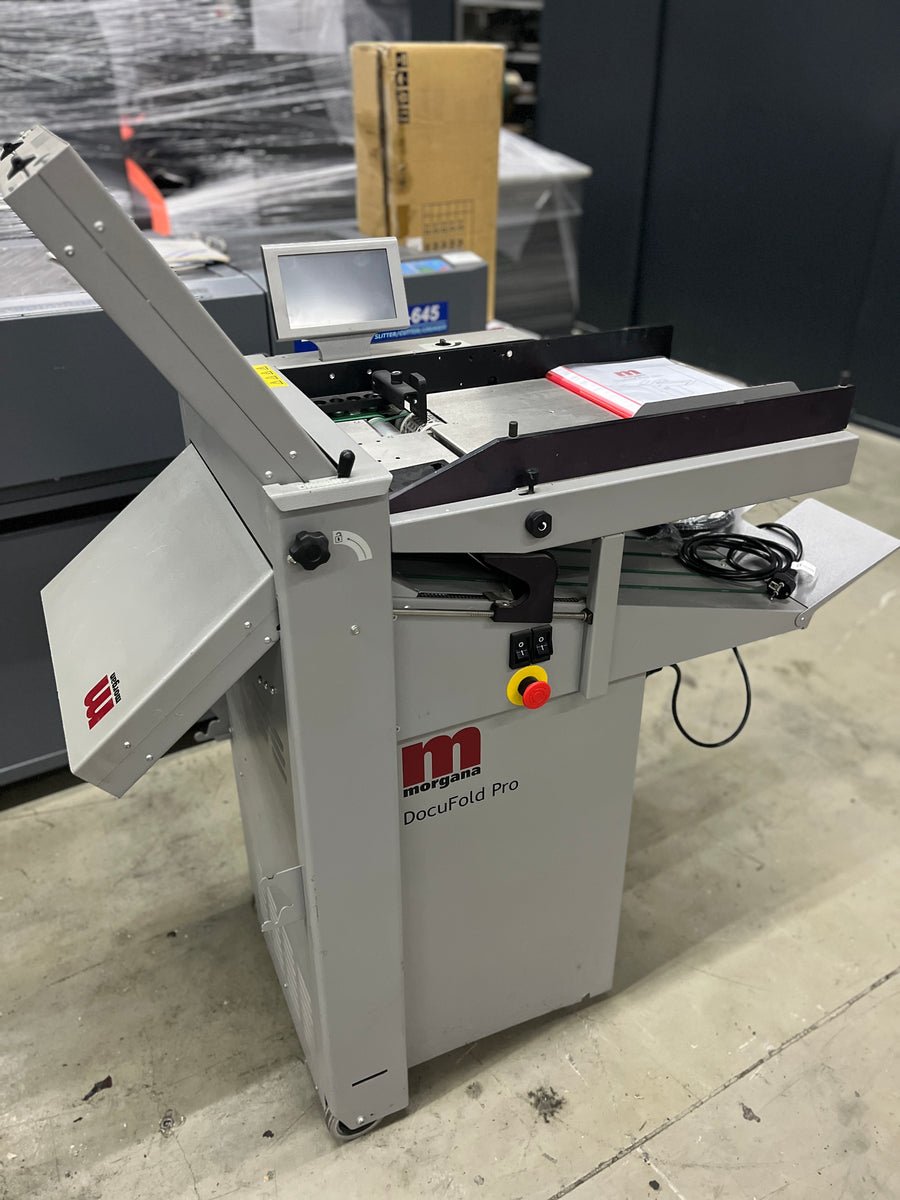

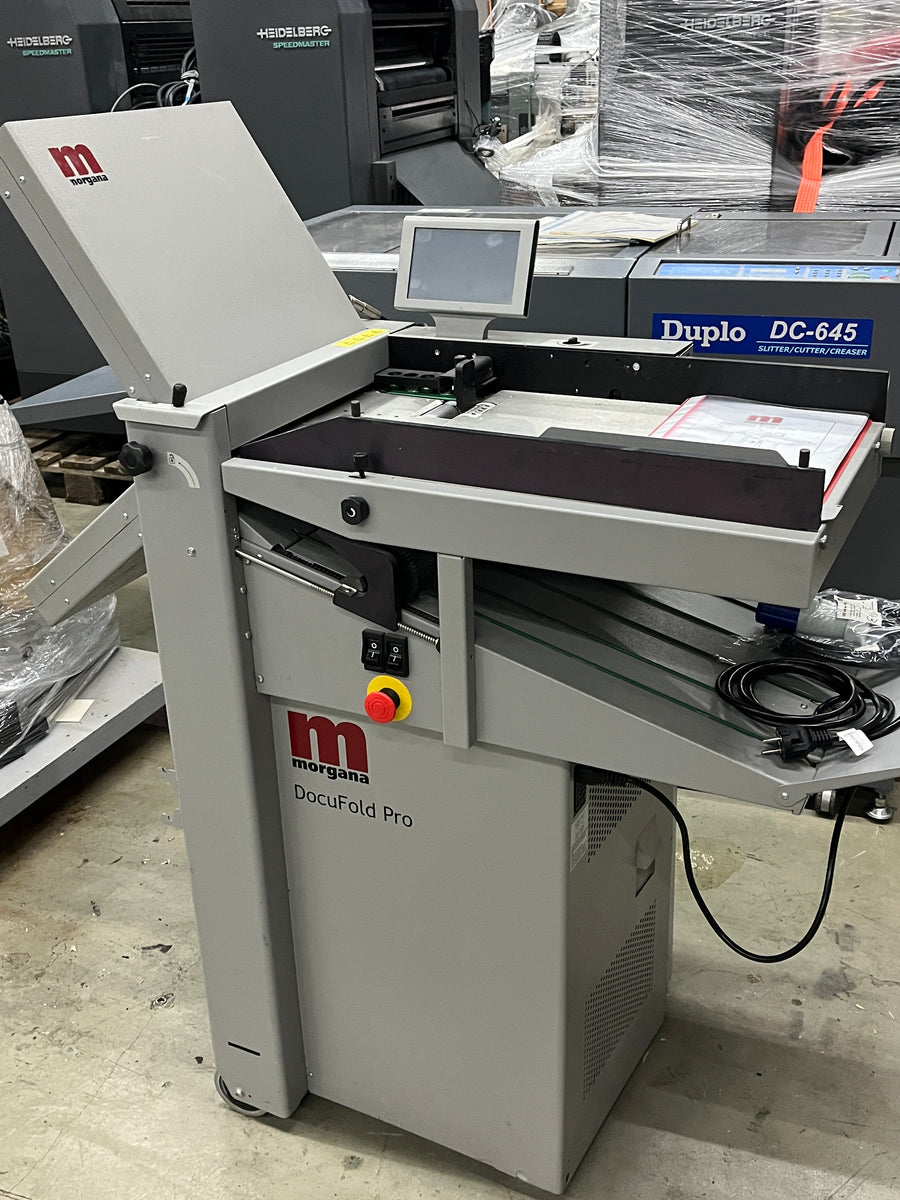

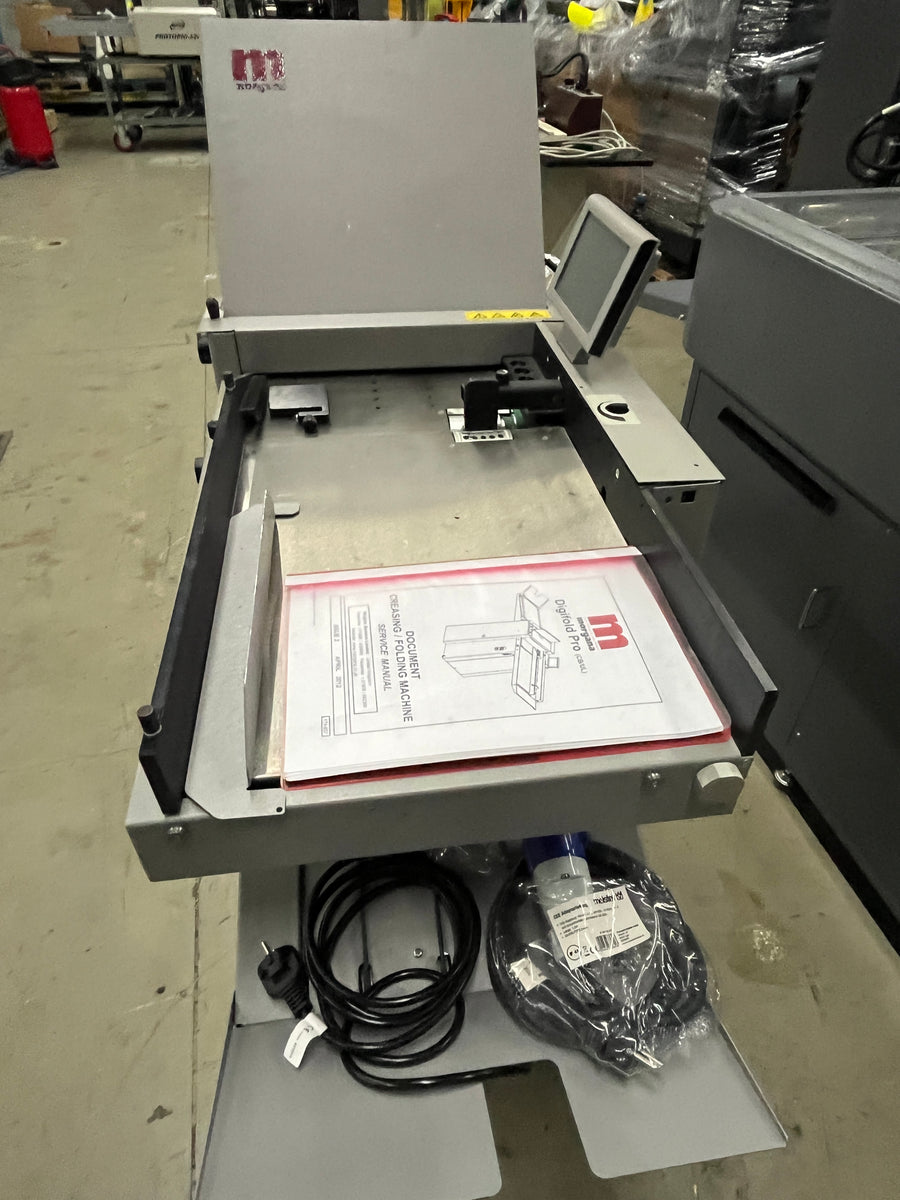

Morgana Docufold Pro
Specifications
| Year of manufacture | 2008 |
| Format | 70x38,5 |
| Totalizer | - |
| Printing units | - |
| Extras | - |
Details
- Machine has a software error
- Key Features
- • SmartScreen touch screen operation• 6000 sph• Takes stock up to 0.4mm (approx 400 gsm)*• Alpha-numeric memory• PosiFeed feed system• Highly versatile• 900mm x 385mm with optional extension• Crease & fold without cracking
- Technical Specifications
- Maximum sheet size
- 700mm x 385mm / 27.5" x 15" (900mm x 385mm / 35.4" x 15" with optional extension table)
- Minimum sheet size
- 210mm x 140mm / 8.2" x 5.5"
- Maximum paper thickness 0.4mm /0.015" (approx 400gsm / 150lb cover)*
- including laminated material
- Minimum paper thickness
- 0.11mm* / 0.004" (approx 20lb bond)*
- Maximum number of folds per sheet 2
- Maximum number programmed applications
- Unlimited alpha numeric
- Minimum repeat crease distance 40mm / 1.57"
- Minimum repeat fold distance
- 70mm /2.75" (depending on paper weight)
- Minimum crease distance from lead edge
- 50mm / 1.96"
- Minimum fold distance from lead edge
- 50mm /1.96" (depending on paper weight)
- Technical Specifications
- Minimum crease distance from tail edge
- 50mm / 1.96"
- Minimum fold distance from tail edge
- 50mm / 1.96" (depending on paper weight)
- Minimum fold length
- 70mm / 2.75"
- Speed per hour (A4 in half)
- 6000 sph
- Dimensions
- L 2020mm / 79.5" x W 680mm / 26.7" x H 1265mm / 49.8"
- Weight
- 190kgs / 419lb
- Power requirement
- 240v 50/60hz
