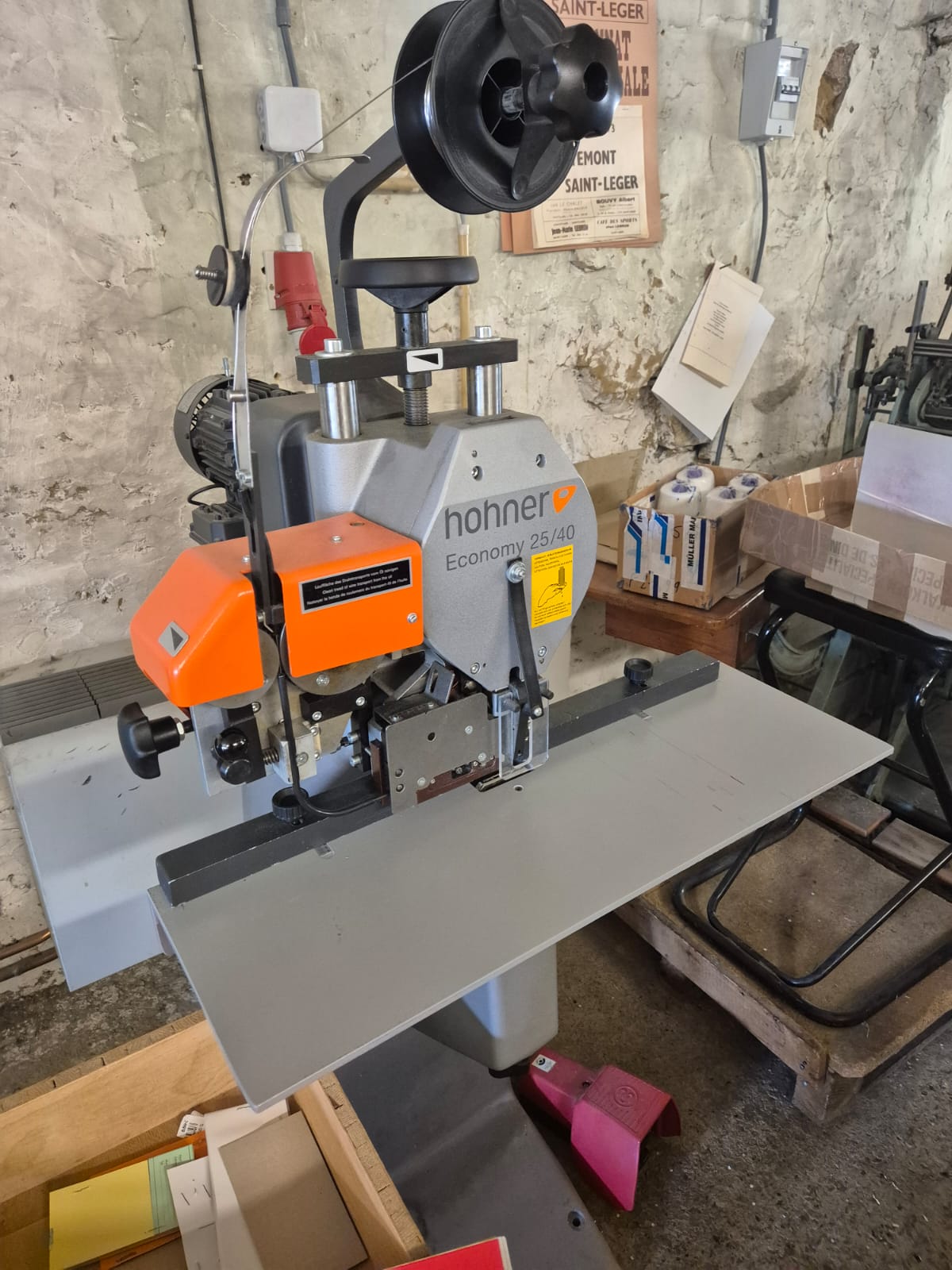

Hohner Economy 25/40

Hohner Economy 25/40

Year 2015
Specification
Max. stitching thickness:
-Clenched: 25 mm / 1.000 in.
-Stubbed: 40 mm / 1.575 in.
Crown width: 14 mm / 0.550 in.
Stitching wire, round: No. 21 - 30 (0.80 - 0.35 mm Ø / diametric)
Stitching wire, flat: No. I - VI (0.70 x 0.35 mm / 0.028 x 0.014 in. up to 0.96 x 0.78 mm / 0.038 x 0.031 in.)
Exchange parts for loop stitching: up to 3 mm / 0.12 in.
Stitching per minute: 206 stitches
Size of stitching table: 700 x 240 cm / 27.5 x 9.4 in.
Working height: 880 mm / 34.64 in.
Area of the machine: 840 x 570 mm / 33.0 x 22.45 in.
Total height of the machine: 1540 mm / 60.60 in.
Space required without the operator: 920 x 620 mm / 36.20 x 24.40 in.
Insertion depth from clincher box:
-Pad stitching approx. 95 mm / 3.75 in.
-Saddle stitching approx. 290 mm / 11.02 in.
Net weight: approx. 200 kg / 440 lbs
Gross weight: approx. 240 kg / 530 lbs
Motor Geared motor: 0.55 kW 230/400, Volt 50 Hz (3-phase)
Noise emission, not exceeding: 81 dB(A)
Good working order
Available immediately
