SCODIX ULTRA 202

Year 2019

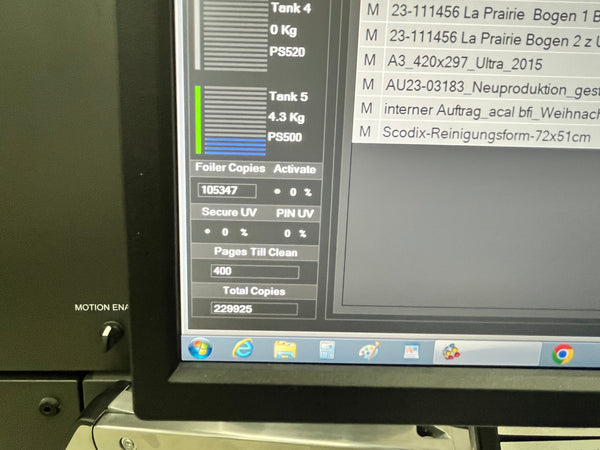

Printing counter: only 230.000 copies

Paper size Min: 29 x 42 cm
Paper size Max: 54 x 78 cm
Printing size Max: 74 x 50 cm

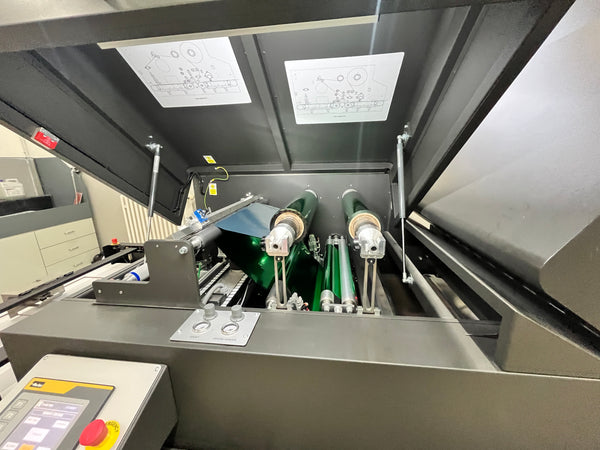

Foil technology	Digital in-line with Scodix PAS foil technology
Foil roll width (min/max)	50-500 mm/1.97-19.68 in
Foil roll size	Diameter:max 30 cm; Length:max 2,000 m; Core:77mm/3 in
Max number of simultaneous rolls	Up to 4 rolls
Polymer layer thickness	From 5 up to 250 microns
Substrate weight	135-675 gsm/6-30 points
Substrate thickness	Up to 700 microns
Foil film type**	Wide variety of industry standard hot/cold foil films
Substrates***	Offset, Plastics, laminated and coated/uncoated substrates
Resolution	Up to 2540 x 450 DPI
Variable Data Enhancement (VDE)	PDF, optimized PDF, barcode system (optional)
Scodix RSP™ Technology	4 CCD camera system, RSP™ (Rotate, Scale, Position) algorithm, automatic positioning, ± 100 micron image to image registration
Substrate loading sizes	Min – L297 x W420 mm / 11.7 x 16.5 in Max – L545 x W788 mm / 21.5 x 31 in
Printing image sizes	Max – L748 x W504 mm / 29.4 x 19.9 in

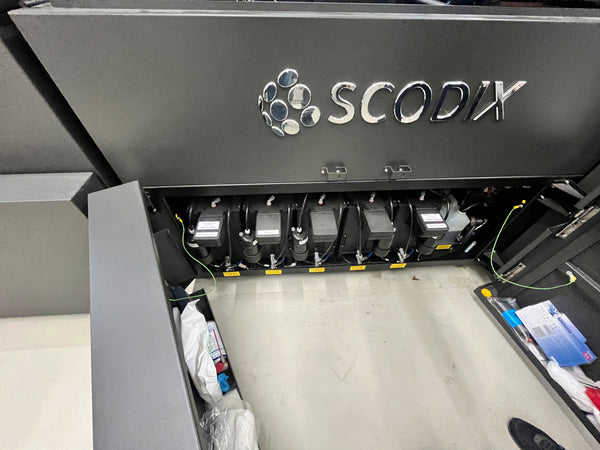

Polymer tank system	4 polymer tanks
Press dimensions (L x H x W)	7880 x 1790 x 1979 mm / 310.2 x 70.4 x 77.9 in
Press weight (net)	5300 kg / 11684 lbs.

2019 Scodix Ultra 202

Send an Enquiry for 2019 Scodix Ultra 202
