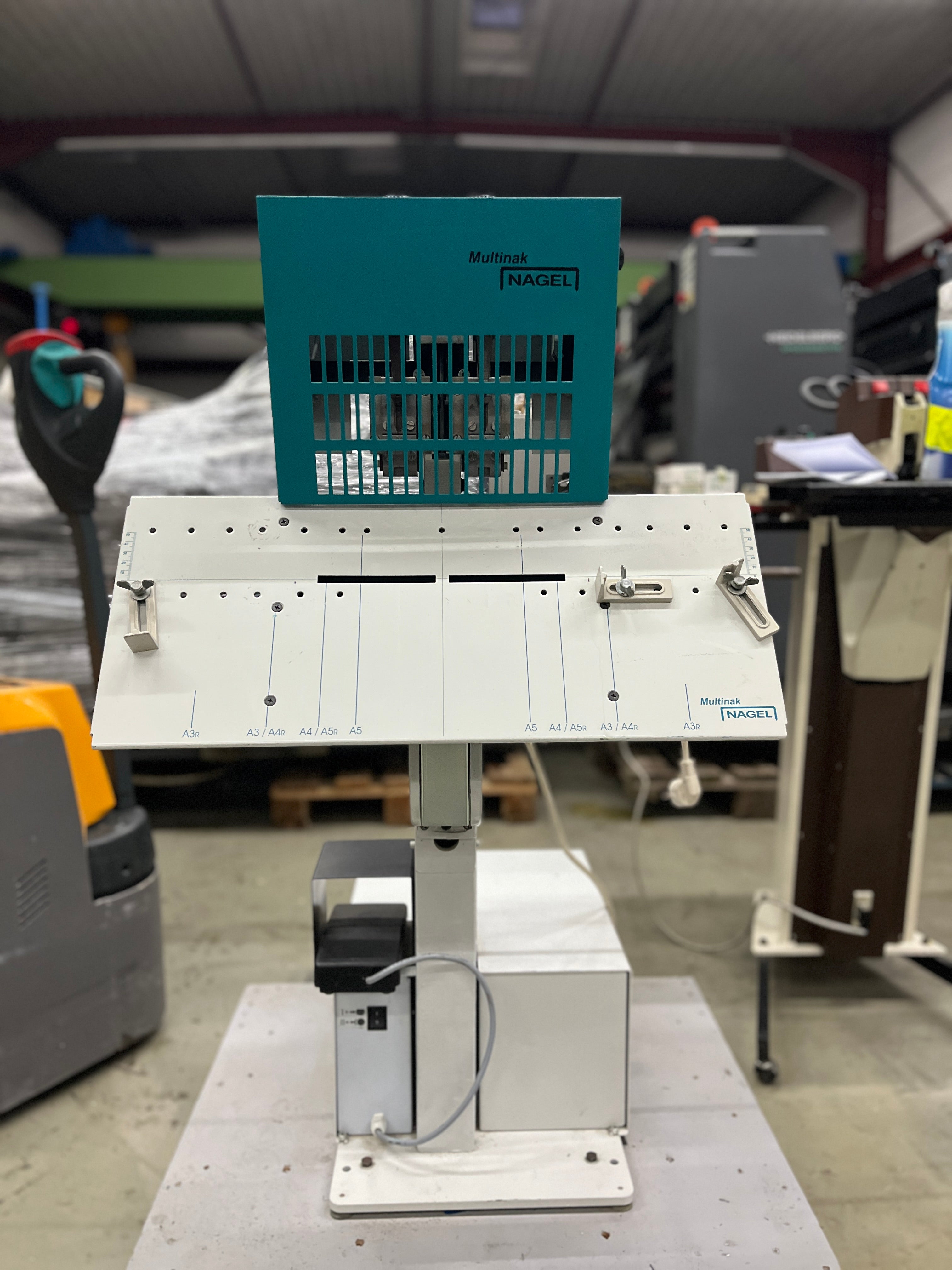

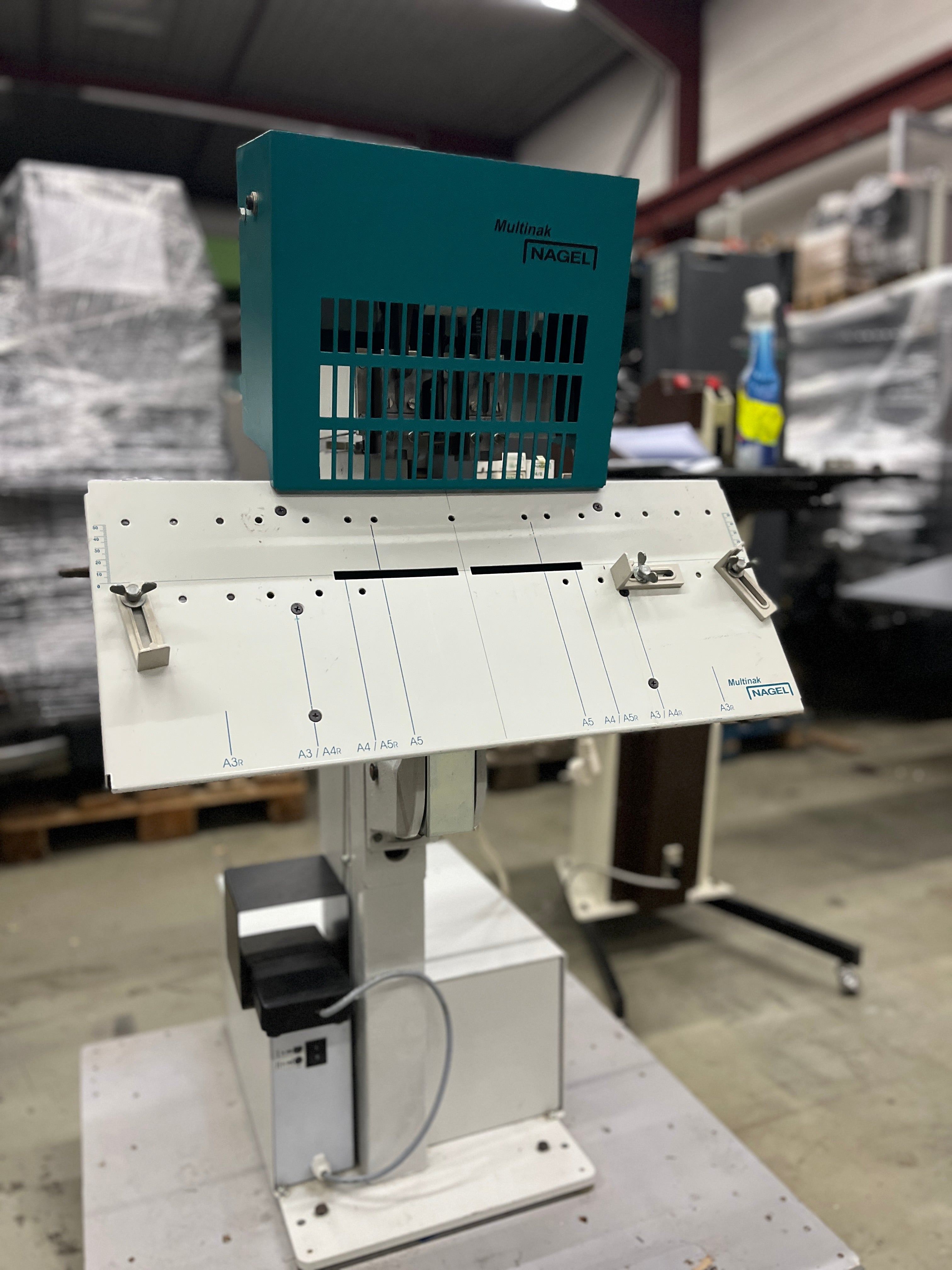

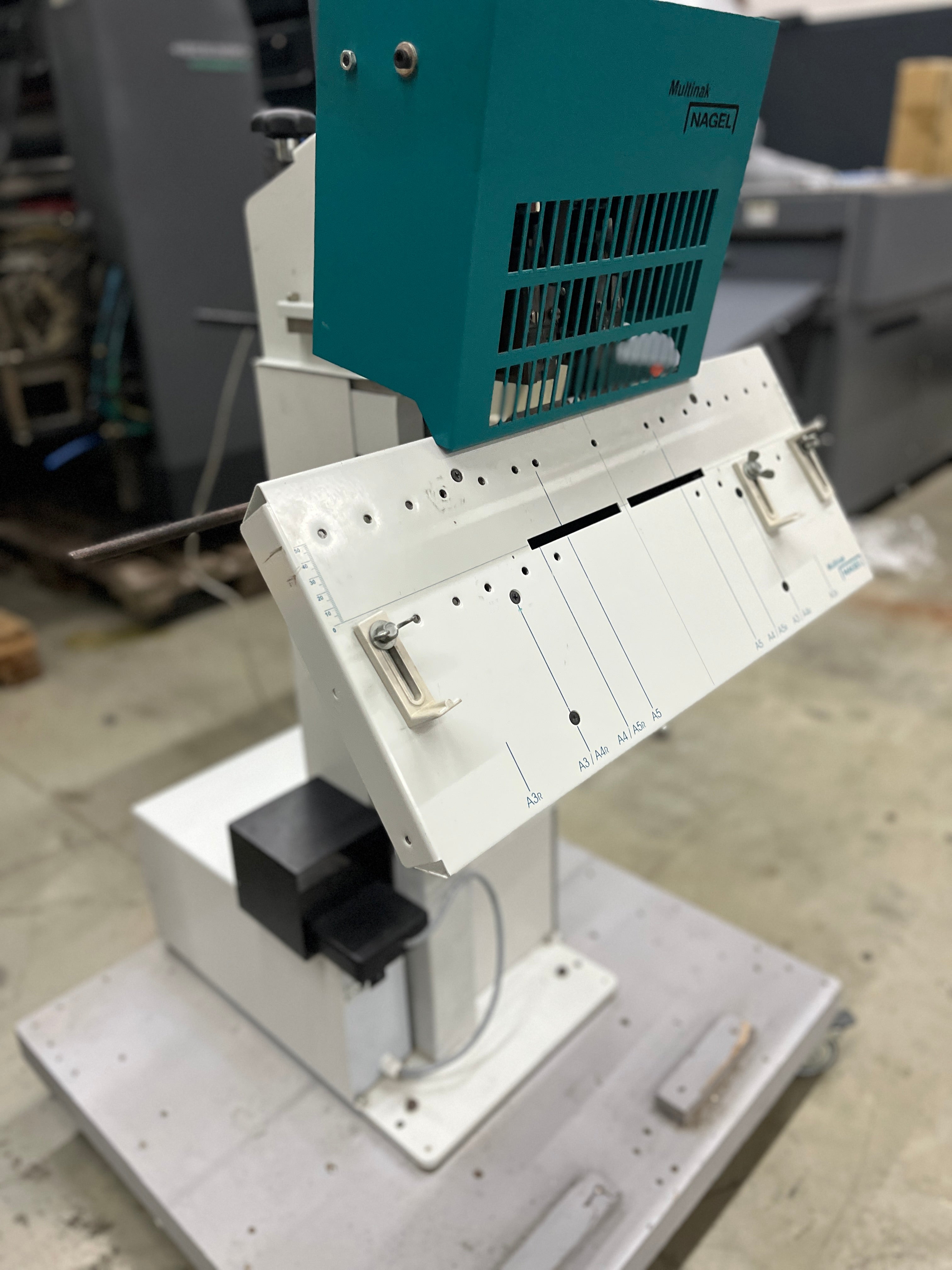

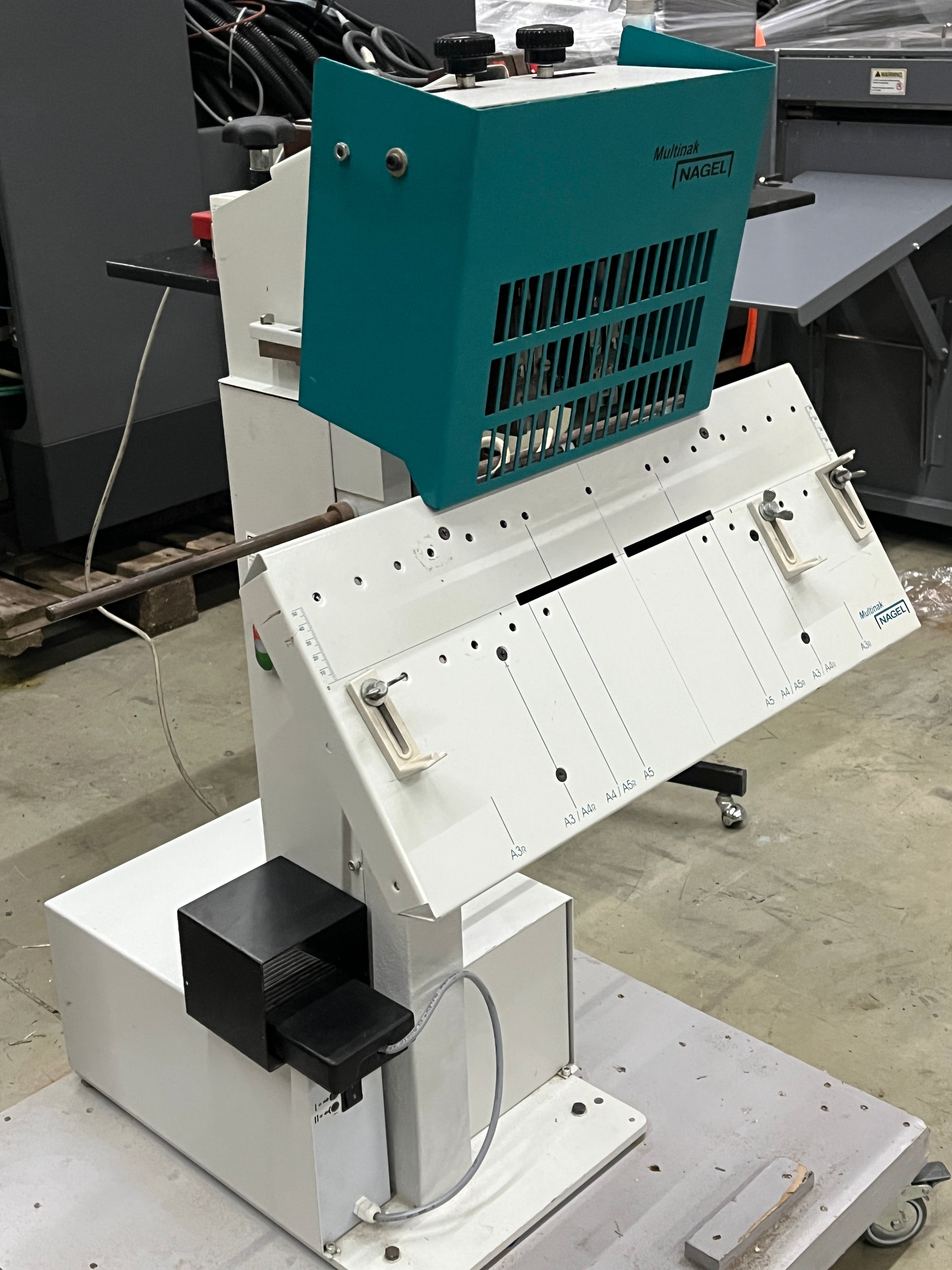

Nagel Multinak S Double head staple stitching machine


Year: 2007
Distance between heads 80 – 155 mm
Brochures from 2 sheets (80g)
Pads up to 270 sheets (80g)
Staple leg length 6 – 18 mm
Staple types 24, 26, 30
Loop staples yes
Clamps for small formats standard
Extension table with back stop bar option

Stapling machine

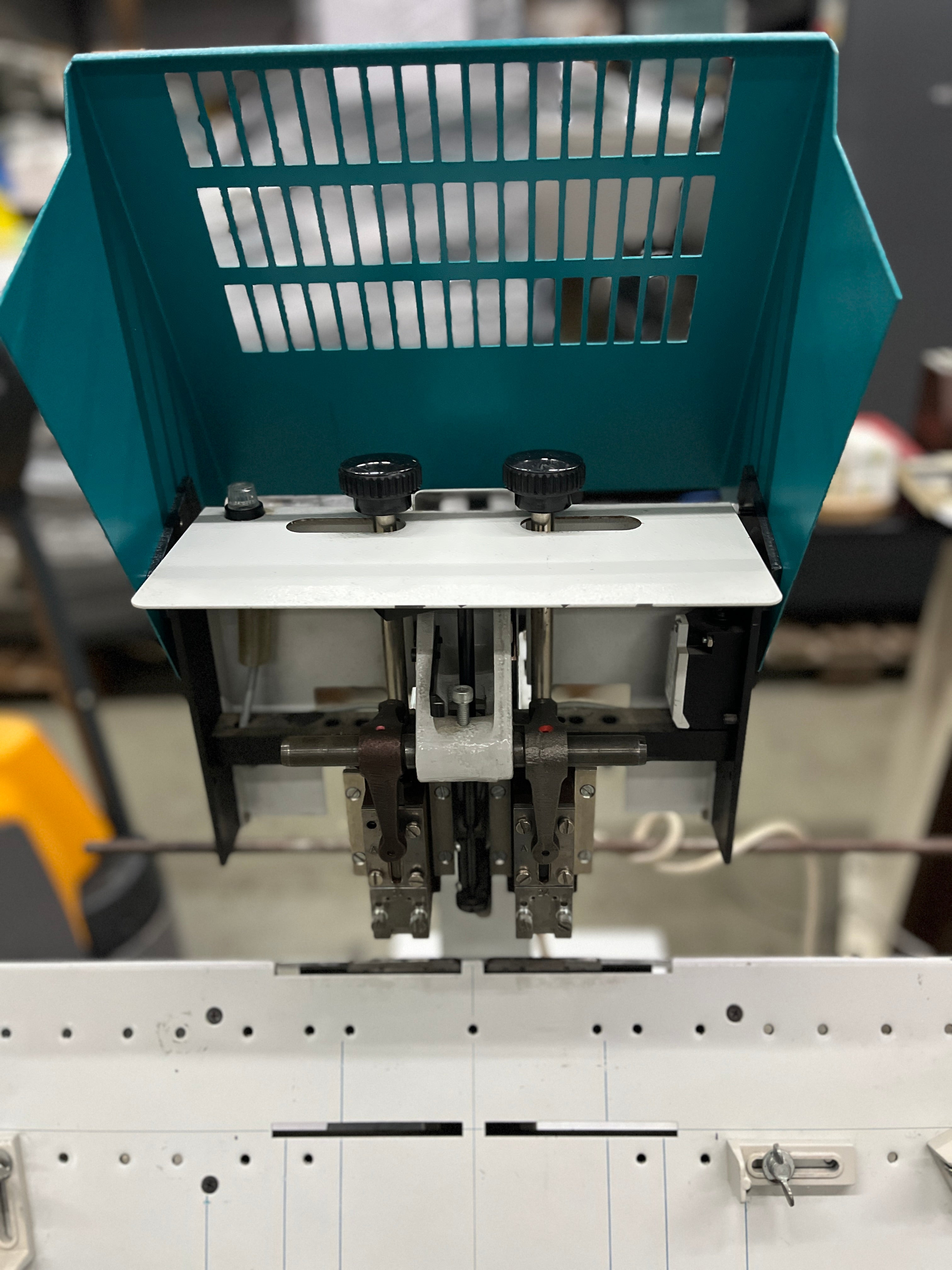

2 staple stitching heads
electr. drive
electr. foot switch

The Multinak twin headed staplers operate extremely quietly and combine consistent stapling accuracy with high performance operation. Both models are conform to the European CE safety standards
Power clenching system The clenching mechanism provides a flat stitch, pushing the legs of the staple flat against the material to ensure strong, perfectly formed stitches each time.

Operating table
Fast change-over from flat to saddle stapling is effected by simply flicking over the table. An optional extension table including a back stop bar is recommended for large formats.

Wear parts
The operator can easily replace all wear parts – no technical support is required

Quick and easy set-up of the heads to take different wire thicknesses and staple sizes, even loop staples. Stapling heads for thick pads up to 27 mm are available as option.

The Multinak is designed to give years of trouble-free service. Fast, versatile and remarkably reliable, the Multinak is a high performance stapler
